Glass Micro Pipette  Micro Injector Holder  Perfusion Apparatus   BLM Technique - Brochure
Ultrasonic Cleaner  Hamilton Syringes  Precision Resistors

BLM "painting" tools
Glass Micro pipette. This ~5 cm long micro pipette is the optimal tool for "painting" of Mueller type BLMs.  It has smooth fire polished tip and can be cleaned with any solvent or sterilized in flame. PART # GMP-5

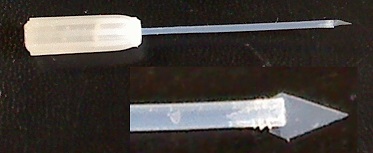

Teflon Brush While glass micropipette is a perfect tool sufficient in most cases for Mueller-Rudin  membrane formation, removal of the excess of lipids from a hole may not be easy in some cases.  For horizontal BLM, it can be done much easier using miniature Teflon "brush".  While it is not exactly "brush" but a flat Teflon sheet, it is in many aspects better than regular painters brush used for BLM "painting".  Most important, our brushes are made from chemically inert material so they can be easily washed with any solvent or sterilized at high temperature.  Brush consist of ~0.03 mm thick diamond shaped piece of Teflon, welded to a Teflon tube a handle.  Each brush supplied with individual storage container. Part # TB-5

Micro injector holder.
Has standard 4 mm diameter 100 mm long stainless steel rod for mounting in almost any micro manipulator. Can hold one or two glass capillaries 0.6 - 2 mm in diameter.
PART NUMBER: MH-1


Perfusion Apparatus.
This simple inexpensive device is designed for manual solution exchange in the BLM cell.  Since plungers of two syringes are connected with polymer coated wire, the volume injected into the cell is equal to the volume taken out.  Designed to work with 10-12 cc syringes but can be easily modified for use with other syringes from 1 to 15 cc.
Dimensions: 210 x 70 mm ~= 8" x 3" (base plate).
PART NUMBER: PA-10A











QUICK START ON BLM TECHNIQUE.
This compact but informative brochure contain all the essential information needed to set  up planar bilayer workstation and begin experimentation in shortest possible time.  A "must have" for the beginners but even experienced researchers may find some useful information.

Table of Contents
1. Introduction
2. Equipment required
3. General recommendations on setting up BLM workstation.
4. Making Mueller-Rudin BLM
5. Making Montal-Mueller BLM
6. Making horizontal BLM
7. Examples of BLM experiments
    A. Membrane lifetime measurements
    B. Capacitance measurements
    C. Testing membrane activity of proteins or peptides
    D. Potential dependencies of protein incorporation
    E. Current/voltage dependencies
8. Appendix
    8.1     Dimensional drawing of BLM chamber
    8.2  BLM chamber cleaning and reassembling.
    8.3  Circuit Diagram of a basic BLM amplifier
    8.4  Abbreviations
9. References

PART NUMBER: QSB-1
Printed version sold out and no longer available. Electronic versions of both editions are available in e-book format at: amazon.com, or i-tunes, or in any e-formats at https://www.smashwords.com/books/view/760884


UC-01
This Ultrasonic Cleaner is compact, reliable and can do cleaning job as well as more expensive devices.  We recommend them for cleaning heavily contaminated BLM chambers, teflon partitions, and other small parts that heed cleaning on hard to access surfaces. While we did not test cleaners ability to make 30nm liposomes, they are suitable for basic lipid re-suspension, which is a part of several vesicle preparation techniques.  UC-1A require 120V AC , UC-1E is for 220 V AC.

SPECIFICATIONS

Power, VA
Frequency, kHz
Tank Size, ml
Dimensions, cm
UC-1A/E
35
42
600
20x13x14


HamiltonTM Syringes
These syringes are perfect for adding small volume of solution to BLM chambers.  Since they are much small, it is often more convenient to use them instead of  than any automatic pipettes in a tight space around BLM chamber.  Commonly used sizes of 10 ul and 50 ul are available
PART NUMBERs: HS-10; HS-50




This Pharmacia REC 102 Two Channels Chart Recorder is perfect for learning basics of ion channel data acquisition techniques. It is much easier to use (and less expensive) than computer based digitizer systems. It is NOS (New, Old Stock), tested, fully functional and covered with ES standard warranty. PART NUMBER: REC-102

BASIC SPECIFICATIONS:

Chart Speed        0.1-20 mm/s and 0.1-20 mm/min with 8 positions switch.

Full scale range    - 1mV-20V with14 positions switch.

Zero Supression  -1 to +5

Power                  110/240 Volt, 50Watt
